Model H9R
 Heavy Duty Industrial Gear Pump
 316 SS |  Alloy-C
 Sealed | Mag-Drive
Port Connections 1" NPT/BSPT
1" FLG*
Max Flow Rate 15 GPM; 57 LPM
Max Differential Pressure 225 PSI; 15.5 BAR
Max Discharge Pressure 225 PSIG; 15.5 BARG
Max Temperature 500 °F; 260 °C
Min Temperature -40 °F; -40 °C
Max Viscosity 100,000 CPS (mPas)
Max Speed 1750 RPM
NPSHR @ Max Speed 4 FT; 1.2 M
Lift (Dry) @ Max Speed 6 FT; 1.8 M
Weight (without motor)
  Sealed, Long-Coupled
  Sealed, Close-Coupled
  Mag, Close-Coupled

8 LBS; 3.6 KGS
34 LBS; 15.5 KGS
38 LBS; 17.3 KGS
Liquiflo H-Series Gear Pumps are manufactured from
316 Stainless Steel or Alloy-C, and are available in both Sealed and Mag-drive configurations. These pumps are available in a wide variety of internal materials to pump a broad range of chemicals, such as polymers, solvents, acids, caustics and other corrosive liquids
*Standard Flanges are ANSI 150# RF.

Contact us for your application needs

Performance Curves
H9R (pdf)
Dimensional Drawings
H9R Sealed LC (pdf)
H9R Sealed LC Base (pdf)
H9R MC/Sealed CC (pdf)
H9R MC LC Base (pdf)
Product Manuals
H1F-H9F Sealed LC&CC (pdf)
H1F-H9F Mag-Drive CC (pdf)
Model Coding
H-Series (pdf)
Bill of Materials
H9-Series (pdf)

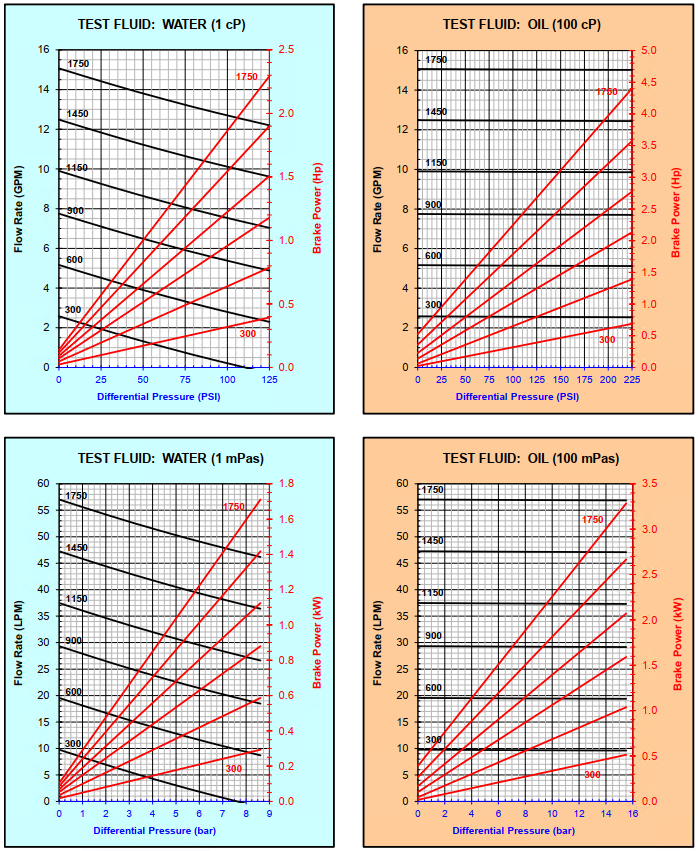

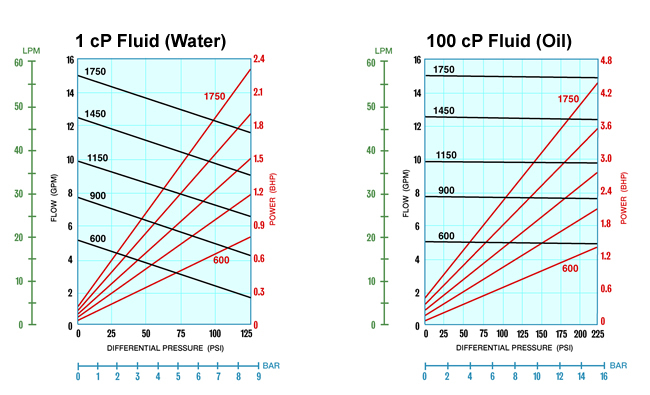

H9R Performance Curves
H9R Dimensional Drawings

 H9R Sealed with Threaded Ports, Long-Coupled

Model H9R
Dimensional Data (inches) for available Seal Configurations
Dimension Single Mechanical Seal
Double Mechanical Seal
CP (1) 9.68 9.68
L 7.08 7.08
N 2.00 2.00 (2)
(1) Add .31 inches for Bearing Flush Plugs.
(2) Minimum dimension.


H9R Mag-Drive & Sealed with Threaded Ports, Close-Coupled
