Model M8
 High Pressure Gear Pump
 316 SS
 Sealed | Mag-Drive
Port Connections 1 1/2" NPT/BSPT
1 1/2" FLG*
Max Flow Rate 19.3 GPM; 73.2 LPM
Max Diff. Pressure 350 PSI; 24.1 BAR
Max Discharge Pressure 500 PSIG; 34.5 BARG **
Max Viscosity 100,000 CPS (mPas)
Max Temperature 500 °F; 260 °C
Min Temperature -40 °F; -40 °C
Max Speed 1750 RPM
NPSHR @ Max Speed 3 FT; 0.9 M
Lift (Dry) @ Max Speed 14 FT; 4.3 M
Weight (without motor)
  Sealed, Close-Coupled
  Mag, Close-Coupled

56 LBS; 25.4 KGS
56 LBS; 25.4 KGS
Model M8 Sealed or Mag-Drive
Close-Coupled

Liquiflo Max-Series Gear Pumps are manufactured from 316
Stainless Steel
and are available in both Sealed and Mag-drive configurations. These pumps feature Helical gears and relieved wear plates for smoother and quieter operation and intrinsic reduction of gear separation forces. Their unique and durable design will assure extended life in high-pressure pumping applications.

*ANSI 150# Flanges are standard; 300# RF Flanges are optional.
** For flanged pumps, pressure derating is required based on flange type and temperature.


Questions?
Contact us for your application needs


Performance Curves
M8 (pdf)

NPSHR Curve
M8 (pdf)

Dimensional Drawings
M8 Sealed & Mag-Drive CC Threaded (pdf)

M8 Sealed & Mag-Drive CC Threaded w/Base (pdf)

M8 Sealed & Mag-Drive CC Flanged (pdf)

M8 Sealed & Mag-Drive CC Flanged w/Base (pdf)

Product Manuals
Max-Series Sealed (pdf)

Max-Series Mag-Drive (pdf)

Model Coding
Max-Series (pdf)

Bill of Materials
Max-Series (pdf)

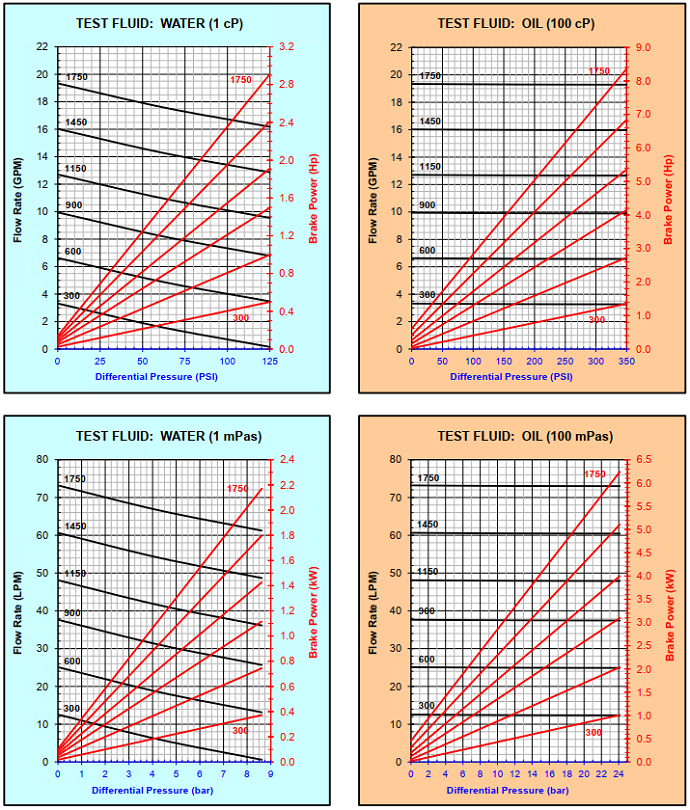

M8 Performance Curves (Typical)



M8 Dimensional Drawings

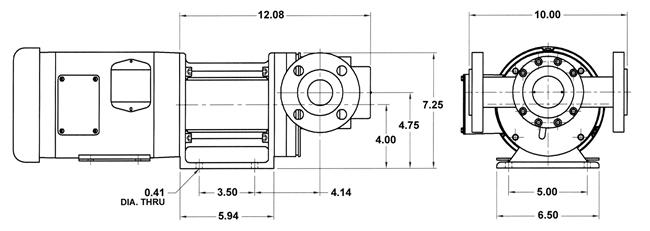

M8 Sealed with Flanged Ports, Close-Coupled

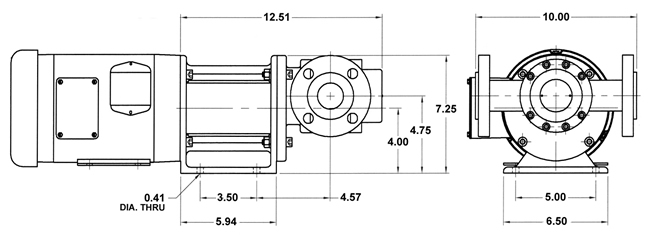

M8 Mag-Drive with Flanged Ports, Close-Coupled
