Model H9F
 Heavy Duty Industrial Gear Pump
 316 SS |  Alloy-C
 Sealed | Mag-Drive
Port Connections 1 1/4" NPT/BSPT
1 1/4" FLG*
DIN32 PN16 FLG
Max Flow Rate 21.5 GPM; 81.4 LPM
Max Differential Pressure 225 PSI; 15.5 BAR
Max Discharge Pressure 225 PSIG; 15.5 BARG
Max Temperature 500 °F; 260 °C
Min Temperature -40 °F; -40 °C
Max Viscosity 100,000 CPS (mPas)
Max Speed 1750 RPM
NPSHR @ Max Speed 3 FT; 0.9 M
Lift (Dry) @ Max Speed 14 FT; 4.2 M
Weight (without motor)

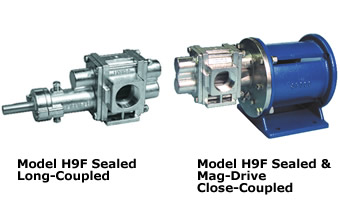

  Sealed, Long-Coupled
  Sealed, Close-Coupled
  Mag, Close-Coupled

10 LBS; 4.5 KGS
36 LBS; 16.4 KGS
40 LBS; 18 KGS
Liquiflo H-Series Gear Pumps are manufactured from
316 Stainless Steel or Alloy-C, and are available in both Sealed and Mag-drive configurations. These pumps are available in a wide variety of internal materials to pump a broad range of chemicals, such as polymers, solvents, acids, caustics and other corrosive liquids
*Standard Flanges are ANSI 150# RF.


Questions?
Contact us for your application needs


Performance Curves
H9F (pdf)

Dimensional Drawings
H9F Sealed LC (pdf)

H9F Sealed LC Base (pdf)

H9F MC/Sealed CC (pdf)

H9F MC LC Base (pdf)

Product Manuals
H1F-H9F Sealed LC&CC (pdf)

H1F-H9F Mag-Drive CC (pdf)

Model Coding
H-Series (pdf)

Bill of Materials
H9-Series (pdf)

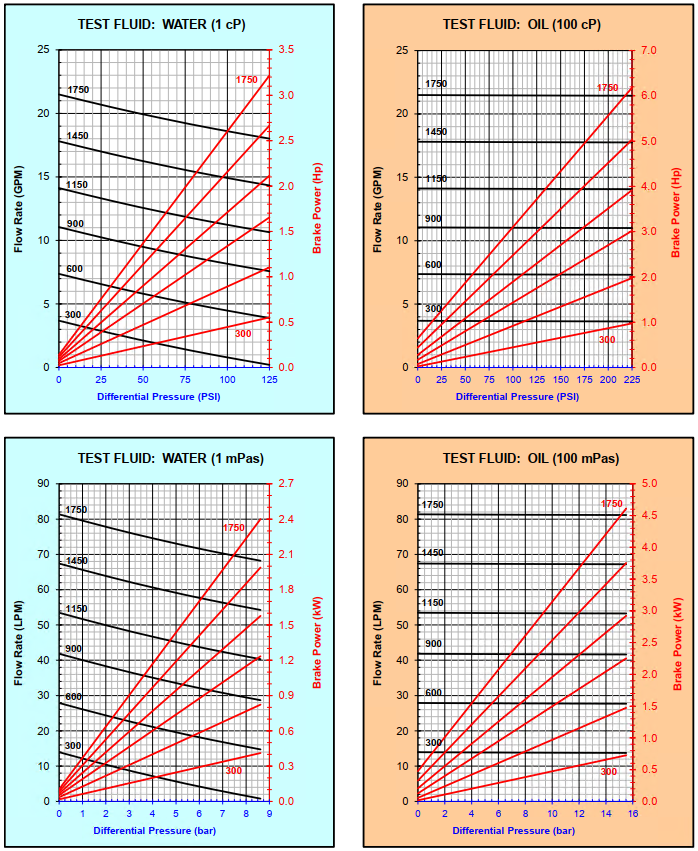

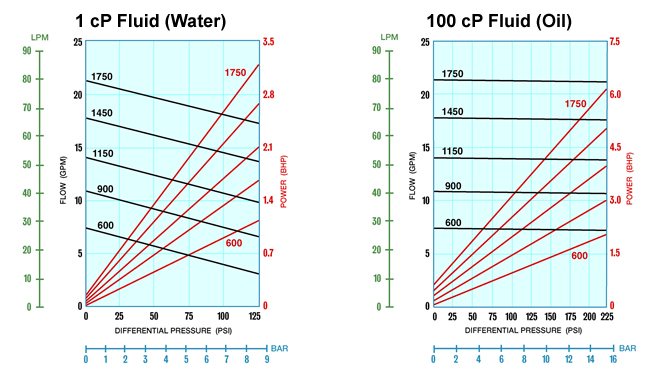

H9F Performance Curves




H9F Dimensional Drawings

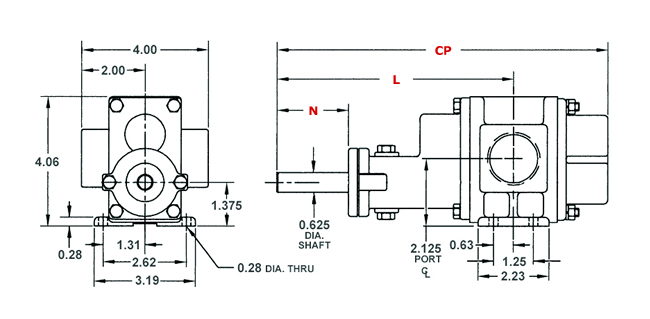

 H9F Sealed with Threaded Ports, Long-Coupled

Model H9F
Dimensional Data (inches) for available Seal Configurations
Dimension Single Mechanical Seal
Double Mechanical Seal
Packing
CP (1) 10.44 10.44
L 7.47 7.47
N 2.00 2.00 (2)
(1) Add .31 inches for Bearing Flush Plugs.
(2) Minimum dimension.

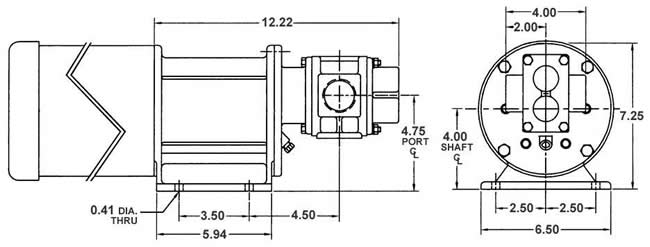

H9F Mag-Drive & Sealed with Threaded Ports, Close-Coupled
