Model 622
Sub-ANSI Centrifugal Pump
316 Stainless Steel

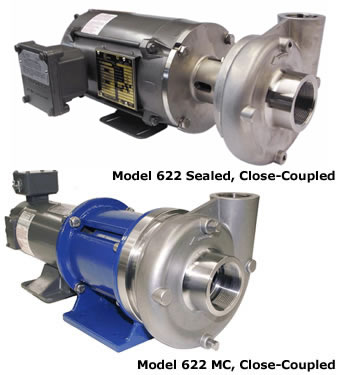

Sealed or Mag-Drive
Suction Port |
2" NPT/FLG 1 |
| Discharge Port |
1 1/2" NPT/FLG 1 |
| Impeller Diameter (Full Size) |
5" |
| Impeller Trims (Standard) |
4.5" 4" 3.5" 3" |

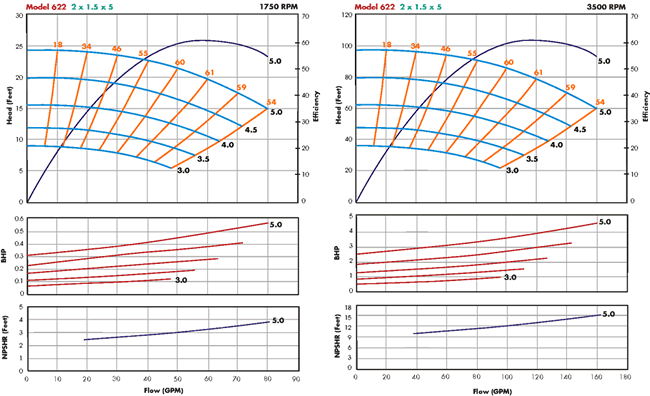

| Max Flow Rate |
160 GPM |
| Max Total Head |
95 FT |
| Max Discharge Pressure |
300 PSIG 2 |
| Max Temperature |
500 °F 3 |
| Min Temperature |
-100 °F 3 |
| Max Speed |
3500 RPM |
| NPSHR @ 3500 RPM & BEP |
13 FT |
| NPSHR @ 1750 RPM & BEP |
3.2 FT |
Weight (without motor)

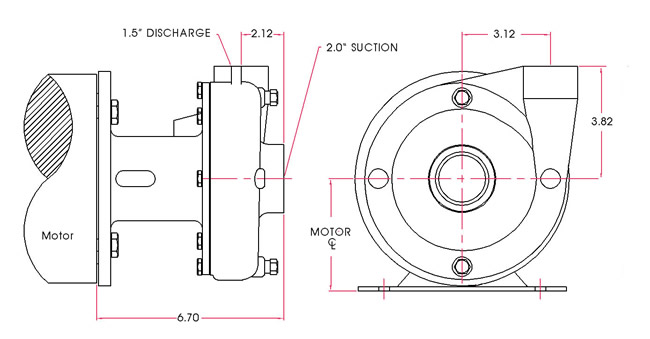

Sealed: Single Int. Mech.

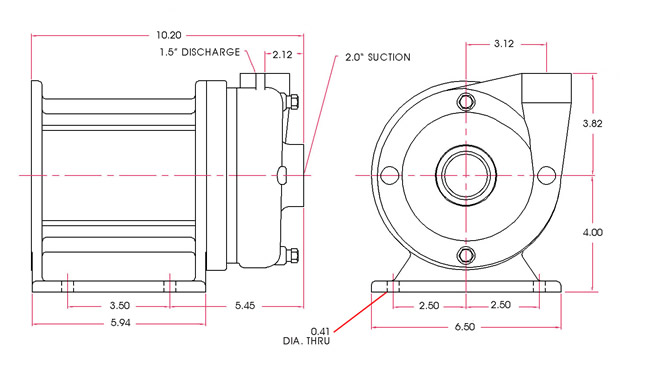

Mag-Drive |
NPT
22 LBS
48 LBS
|
FLG
30 LBS
56 LBS
|
|
1 Standard Flanges are ANSI 150# RF.
2 Maximum Pressure Rating for 150# Flanges is 275
PSIG up to 100°F. Derating is required above 100°F.
3 Temperature Limit given for Mag-drive pump with proper configuration; Temperature Limit for Sealed pump is dependent on Motor or Driver.
|
