Model 620
Sub-ANSI Centrifugal Pump
316 Stainless Steel or Alloy-C

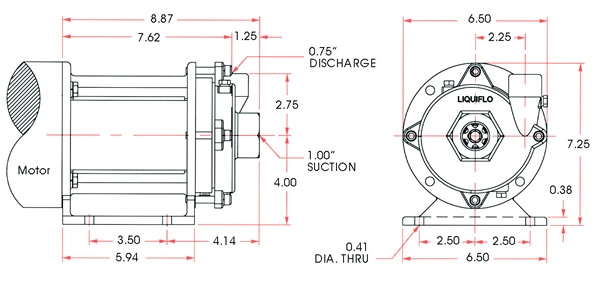

Sealed or Mag-Drive

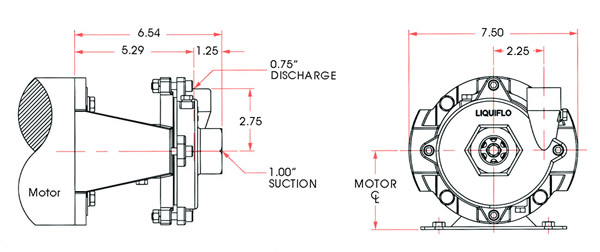

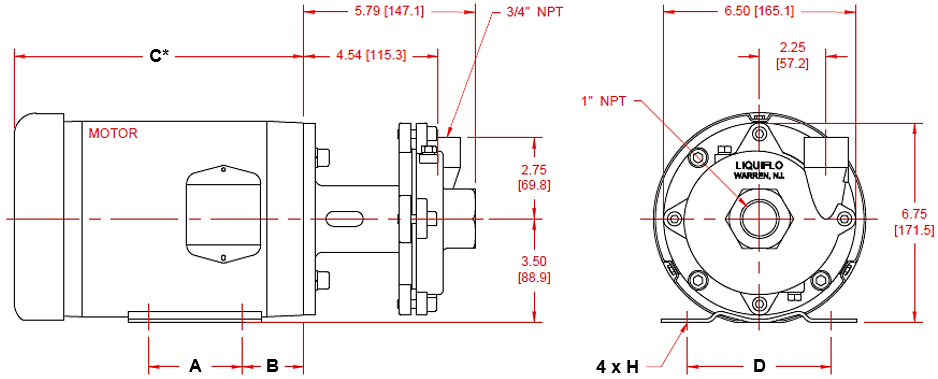

Suction Port	1" NPT/FLG ¹
Discharge Port	3/4" NPT/FLG ¹
Impeller Diameter (Full Size)	3 3/4"
Impeller Trims (Standard)	3.5" 3.25" 3" 2.75"

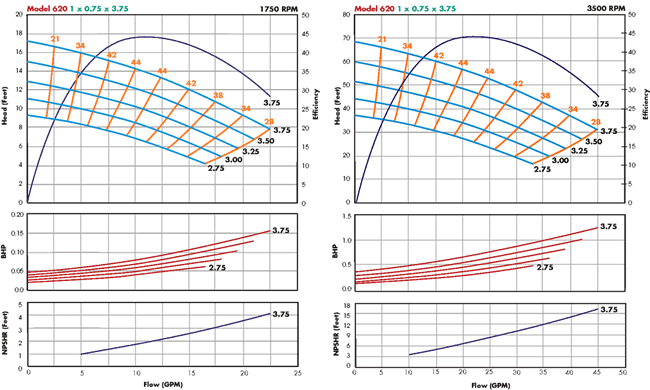

Max Flow Rate	45 GPM
Max Total Head	65 FT
Max Discharge Pressure	300 PSIG ²
Max Temperature	500 °F ³
Min Temperature	-100 °F ³
Max Speed	3500 RPM
NPSHR @ 3500 RPM & BEP	7.5 FT
NPSHR @ 1750 RPM & BEP	1.8 FT
Weight (without motor) Sealed (N): SMS Type 21/9T Sealed (L): SMS Type 9A Sealed (L): DMS/Packing Mag-Drive	NPT 12 LBS 16 LBS 26 LBS 30 LBS	FLG 16 LBS 20 LBS 30 LBS 34 LBS

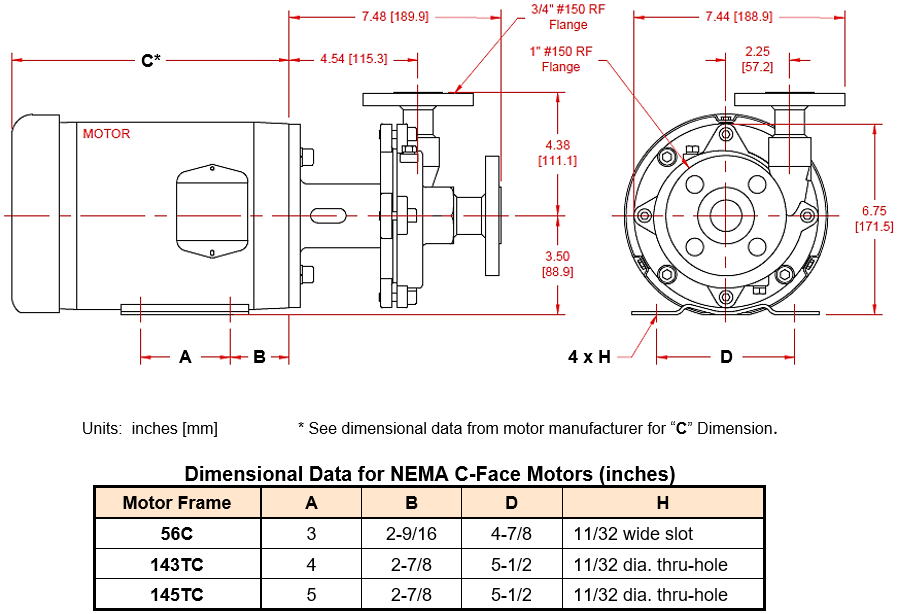

1 Standard Flanges are ANSI 150# RF.

2 Maximum Pressure Rating for 150# Flanges is 275
PSIG up to 100°F. Derating required above 100°F.

3 Temperature Limit given for Mag-drive pump with proper configuration; Temperature Limit for Sealed pump is dependent on Motor or Driver.

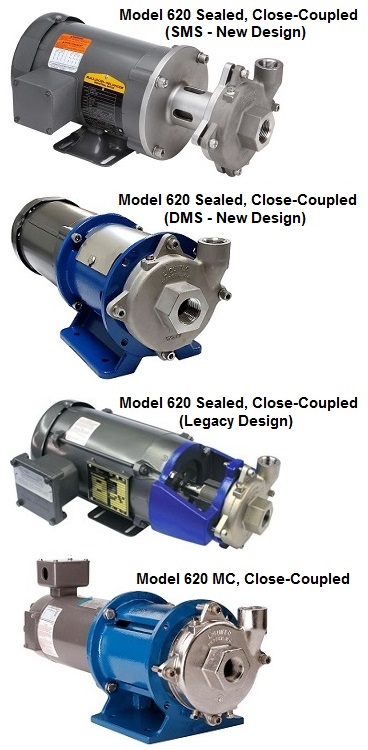

N = New Design (Closed-Bracket)
L = Legacy Design (Open-Bracket)

SMS = Single Mechanical Seal
DMS = Double Mechanical Seal

Liquiflo's Centry^® Series are Sealed and Magnetically-Coupled (MC) Centrifugal pumps engineered and manufactured for the user with increased needs for equipment reliability. These pumps are specifically designed to handle the lower flow applications that create maintenance problems for standard ANSI pumps operating at less than BEP.
