Model H7F
 Heavy Duty Industrial Gear Pump
 316 SS |  Alloy-C
 Sealed | Mag-Drive
Port Connections 3/4" NPT/BSPT
3/4" FLG*
Max Flow Rate 10.7 GPM; 40.5 LPM
Max Differential Pressure 225 PSI; 15.5 BAR
Max Discharge Pressure 225 PSIG; 15.5 BARG
Max Temperature 500 °F; 260 °C
Min Temperature -40 °F; -40 °C
Max Viscosity 100,000 CPS (mPas)
Max Speed 1750 RPM
NPSHR @ Max Speed 5.2 FT; 1.6 M
Lift (Dry) @ Max Speed 7 FT; 2.1 M
Weight (without motor)
  Sealed, Long-Coupled
  Sealed, Close-Coupled
  Mag, Close-Coupled

6.5 LBS; 3.0 KGS
29 lbs; 13 KGS
36 lbs; 16.4 KGS
Liquiflo H-Series Gear Pumps are manufactured from
316 Stainless Steel or Alloy-C, and are available in both Sealed and Mag-drive configurations. These pumps are available in a wide variety of internal materials to pump a broad range of chemicals, such as polymers, solvents, acids, caustics and other corrosive liquids
*Standard Flanges are ANSI 150# RF.

Contact us for your application needs

Performance Curves
H7F (pdf)
Dimensional Drawings
H7F/R/N Sealed LC (pdf)
H7F/R/N Sealed LC Base (pdf)
H7F/R/N MC CC (pdf)
H7F/R/N MC LC Base (pdf)
Product Manuals
H1F-H9F Sealed LC&CC (pdf)
H1F-H9F Mag-Drive CC (pdf)
Model Coding
H-Series (pdf)
Bill of Materials
H7-Series (pdf)

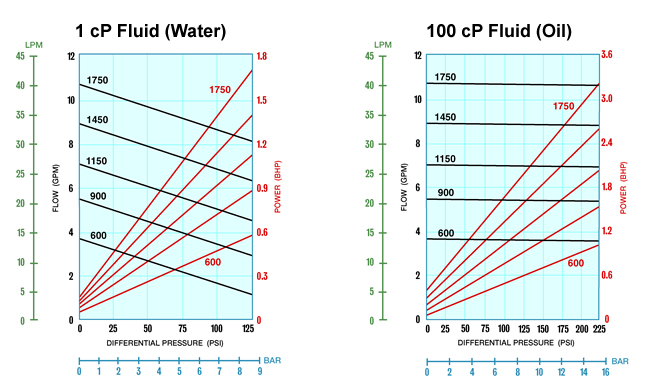

H7F Performance Curves
H7F Dimensional Drawings

 H7F Sealed with Threaded Ports, Long-Coupled

Model H7F
Dimensional Data (inches) for available Seal Configurations
Dimension Single Mechanical Seal
Double Mechanical Seal
CP (1) 8.32 8.32
L 5.98 5.98
N 1.11 1.13 (2)
(1) Add .31 inches for Bearing Flush Plugs.
(2) Minimum dimension.


H7F Mag-Drive & Sealed with Threaded Ports, Close-Coupled
