Model M7
 High Pressure Gear Pump
 316 SS
 Sealed | Mag-Drive
Port Connections 1 1/4" NPT/BSPT
1 1/4" FLG*
Max Flow Rate 15.5 GPM; 58.7 LPM
Max Diff. Pressure 350 PSI; 24.1 BAR
Max Discharge Pressure 500 PSIG; 34.5 BARG **
Max Viscosity 100,000 CPS (mPas)
Max Temperature 500 °F; 260 °C
Min Temperature -40 °F; -40 °C
Max Speed 1800 RPM
NPSHR @ Max Speed 4 FT; 1.2 M
Lift (Dry) @ Max Speed 6 FT; 1.8 M
Weight (without motor)
  Sealed, Close-Coupled
  Mag, Close-Coupled

55.5 LBS; 25.2 KGS
55.5 LBS; 25.2 KGS
Model M7 Sealed or Mag-Drive
Liquiflo Max-Series Gear Pumps are manufactured from
316 Stainless Steel or Titanium, and are available in both Sealed and Mag-drive configurations. These pumps feature Helical gears and relieved wear plates for smoother and quieter operation and intrinsic reduction of gear separation forces. Their unique and durable design will assure extended life in high-pressure pumping applications.

*ANSI 150# Flanges are standard; 300# RF Flanges are optional.
** For flanged pumps, pressure derating is required based on flange type and temperature.

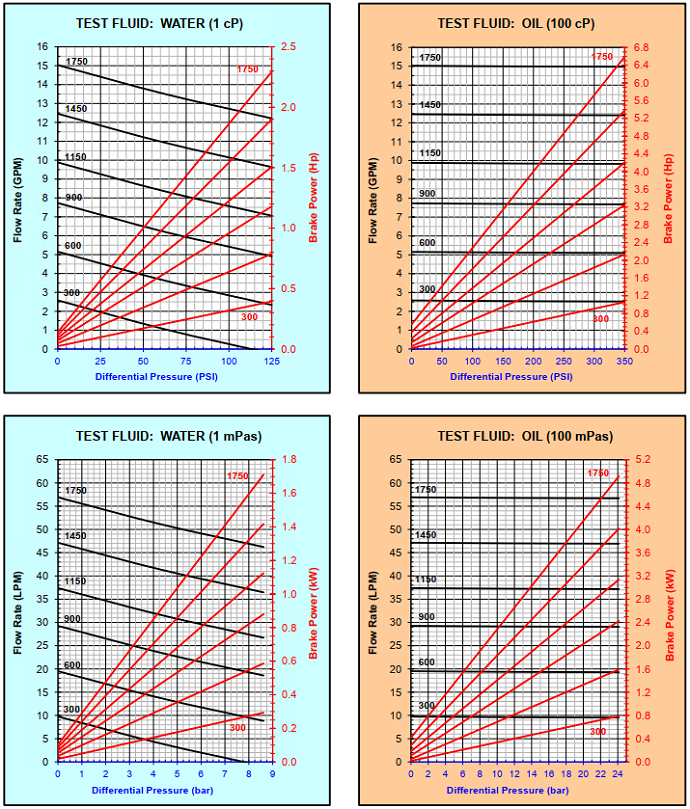

M7 Performance Curves
M7 Dimensional Drawings

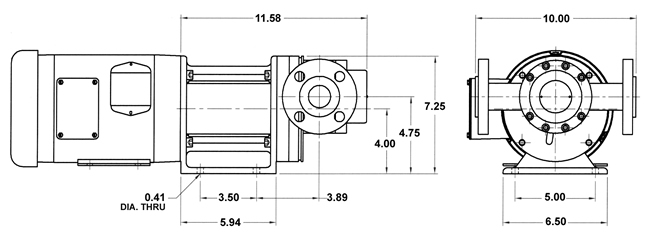

M7 Sealed with Flanged Ports, Close-Coupled

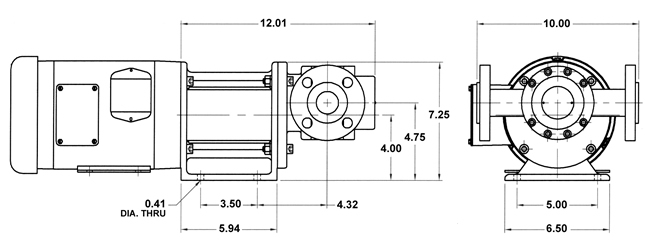

M7 Mag-Drive with Flanged Ports, Close-Coupled
